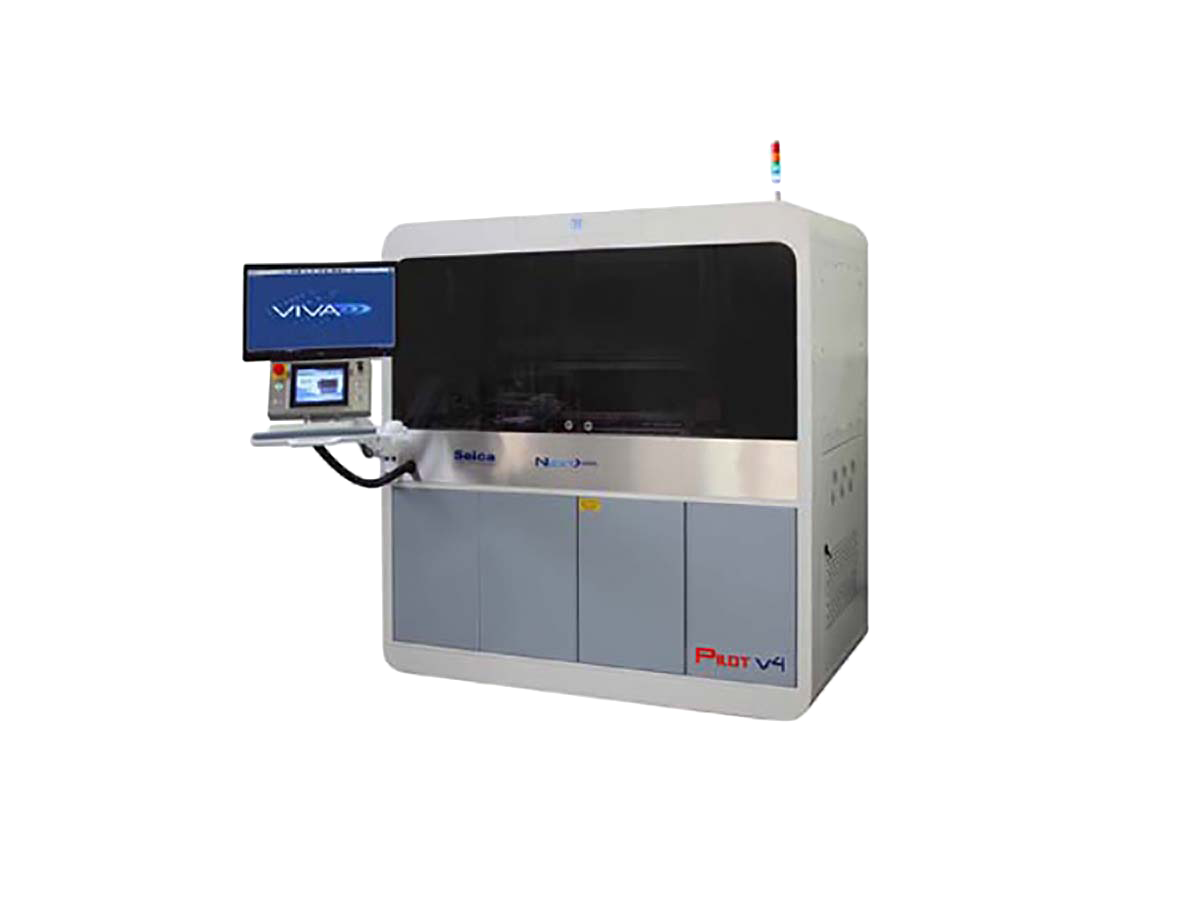

The Pilot V4 Next>series is a full-performance, double-sided, flying probe test system with an extremely high level of flexibility, making it the ideal solution for those with a wide variety of testing needs, from prototypes to small/medium production volume, through the repair of field returns and reverse engineering. The vertical, compact architecture and the excellent board clamping system ensure that there is no oscillation of the board under test, which in turn greatly facilitates the precise positioning of the probes on the test points.
Pilot V4 Next>series is suitable for:
- Electronic boards repair
- Reverse engineering
- Programming without CAD data
- Boards not designed for test
- Low-volume production
- High-mix product
- Hybrid testing with a connection of external instruments
Features:
- Testing units with 2 flying probes on each side
- Manual board loading
- Reverse-engineering and rebuild of electrical schematics
- Vectorless measurements, node impedance, and in-circuit
- Thermal tests and visual inspection on both sides
- Possibility to connect external resources (instruments, power supply units) to D.U.T.
- Offline Programming and Repair Station
- Barcode and 2D-code reading management
- Automated statistics data collection for the probability of failure
