6TL19 Off-Line Base Test Platform

6TL19 Off-Line Base Test Platform

  • 11U height 19inch rack space (530mm depth)
  • VPC S6 or G12 interface
  • Man-Machine interface H73000301 not included
Categories: , ,

The 6TL19 is a bare half-rack with castors for creating Off-Line, modular, flexible, and reliable Base test platforms. The overall rack capacity is 11U (580mm depth).

To configure your Base Test Platform, the following parts can be added to the 6TL19 bare half-rack:
– Test Rack Manager, to control the test station.
– Power Distribution Unit.
– Uninterruptible Power Supply
– Industrial PC or NI PXI to control the platform
– 19’’ Monitor and keyboard with trackball
– VPC Mass Interconnect Receiver (6 or 12 slots)
– YAV Modules
– Accessories: Beacon, Air inlet Pneumatic kit…
– Any 19’ Instrument

Contact us for configuring your own 6TL19!
Learn more about our Build to print service for Test Platforms.

The 6TL19 Platform is a perfect base for the conception of a real modular Automatic Test Equipment for low to mid manufacturing volumes.

A system designed around the 6TL19 is simple, easy to maintain, and cost-effective. The rack is prepared for the direct integration of two platform-based receivers from Virginia Panel, the S6, G12.

The core of the system can be either an Industrial PC or a NI-PXI. A UPS will protect the valuable instrumentation as well as control all the steps for an automatic power-up and down of the test system.

Thanks to the Test Rack Manager (MMI), interaction and control with the system, as well as the basic safeties, are implemented out–of–the–box.

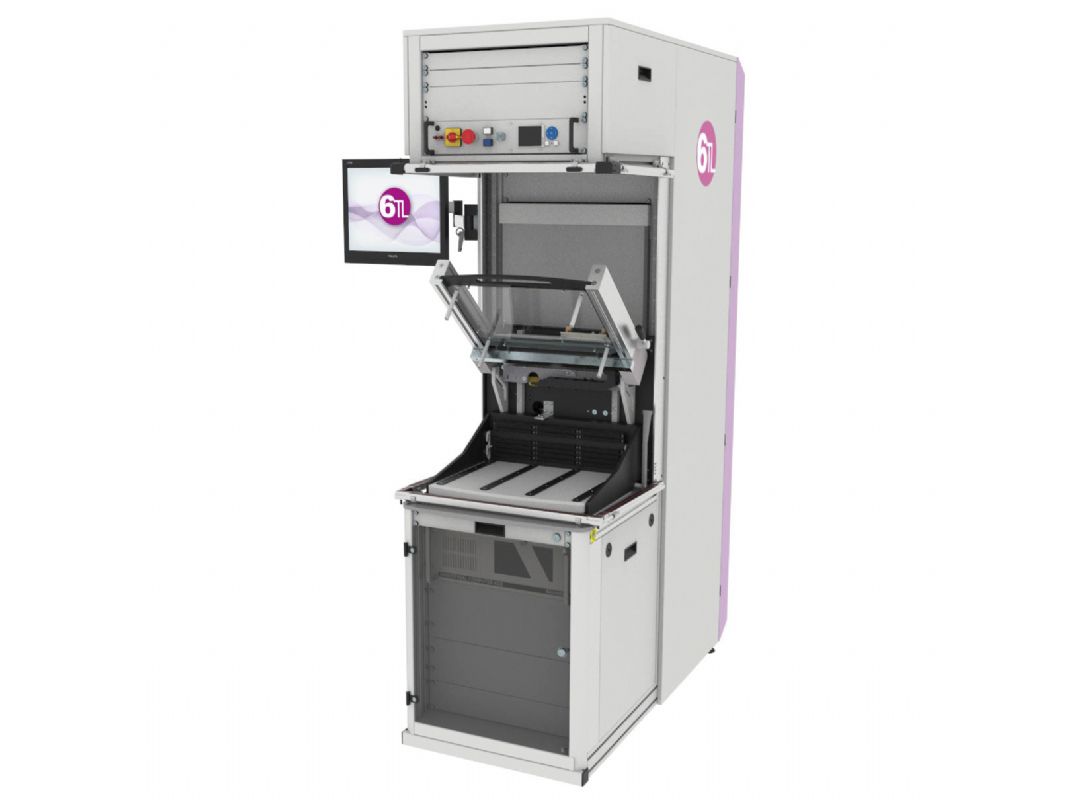

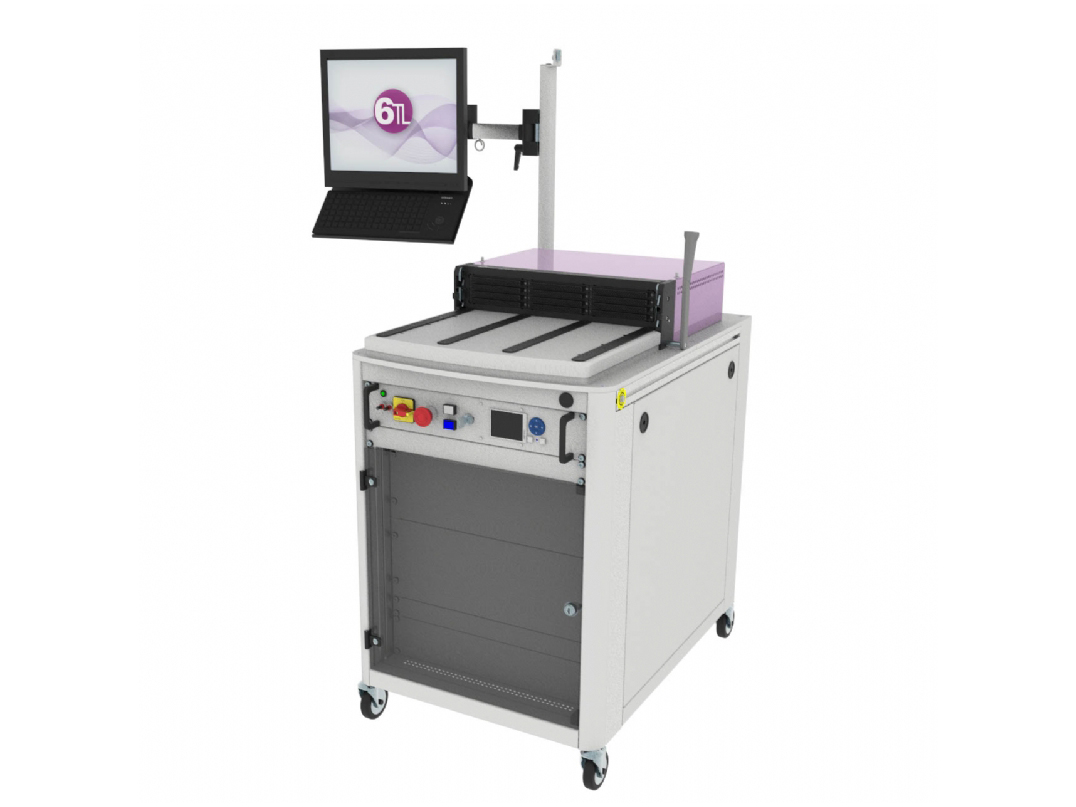

Typical 6TL19 configuration would be the one shown in the image. Order the following products to get this configuration:

  • H71001900, 6TL19 Off-Line Base Test Platform
  • H73000301, Test rack manager
  • H72001910 S6 Kit
  • H71007300, Monitor & Keyboard in a lockable drawer
  • MMSAI2U1000, UPS
